Product Overview
Our Secia aluminum foil bag-in-box (BIB) is a flexible liquid packaging solution composed of multi-layer metallic composite film and a detachable butterfly tap spout. Different from ordinary plastic liquid bags, the full aluminum laminated structure achieves ultra-high oxygen & light barrier performance. It is widely matched with outer cartons to form complete bag-in-box packaging, suitable for edible liquids like fruit juice, wine, syrup, as well as cosmetic raw materials, detergent stock solution, industrial liquid additives. We support customized capacities from small portable 1L to bulk 220L industrial large-volume bags, all materials comply with food contact and cosmetic packaging safety standards.
Technical Specifications
| Item | Standard Specification |
|---|---|
| Composite Material | PET + AL + PA + PE |
| Available Capacity | 1L / 3L / 5L / 10L / 20L / 25L / 50L / 100L / 220L |
| Tap Style | Red Butterfly Flip Tap (custom tap color available) |
| Bag Thickness | 100μm ~ 200μm (custom adjustable) |
| Barrier Performance | Oxygen transmission rate ＜0.1 cm³/(m²·24h), Water vapor transmission rate ＜0.05 g/(m²·24h) |
| Sealing Method | High-temperature hot edge sealing, double side reinforced seal |
| Working Temperature | -10℃ ~ 60℃ |
| Certifications | Food Contact Material Test Report, GRS Recyclable Material Optional |
Key Advantages
Ultra High Barrier Preservation
Full aluminum foil layer blocks light, oxygen and moisture, 3~5 times longer storage time than transparent liquid bags, no oxidation & discoloration of juice/cosmetic raw liquid.

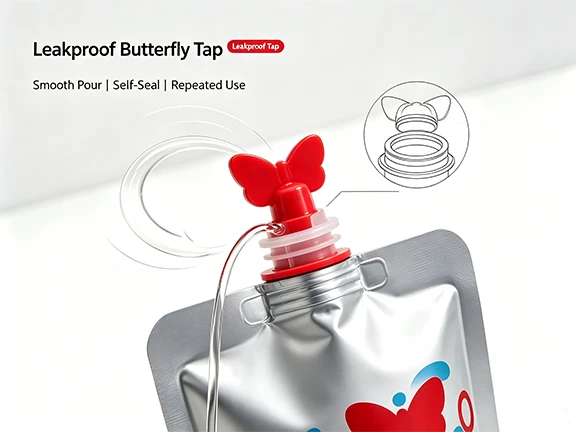

Leakproof Butterfly Tap Design
Flip butterfly valve with built-in silicone sealing ring, smooth pouring, self-seal after closing, no dripping during transportation and repeated use.
Strong Mechanical Durability
PA nylon middle layer greatly improves puncture & tear resistance, support large volume heavy load, no breakage during stacking and transportation.
Cost & Space Saving
Empty bags are foldable, take up little warehouse space; lighter than rigid plastic barrels, lower logistics cost, disposable & recyclable.
Wide Liquid Compatibility
Inert PE inner layer, compatible with acidic fruit juice, alcohol syrup, water-based detergent, cosmetic essence raw materials, no chemical reaction.
Food & Cosmetic Safe Grade
All raw materials meet food contact packaging standards, no harmful solvent residue, available for edible & beauty liquid production.
Application Scenarios
Manufacturing

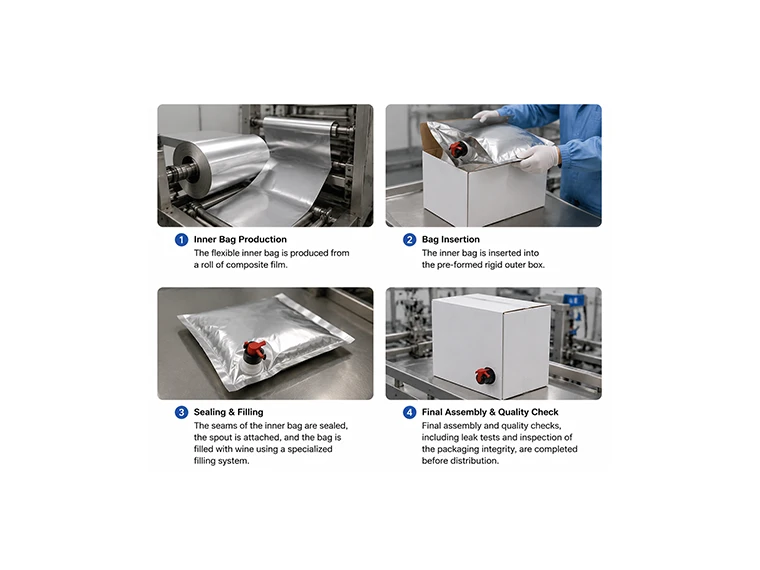

The Bag-in-box packaging for wine is manufactured by first producing the flexible inner bag from a roll of composite film. The inner bag is then inserted into the pre-formed rigid outer box. After sealing the seams of the inner bag and attaching the spout or tap, the bag is filled with wine using a specialized filling system. The final assembly and quality checks, including leak tests and inspection of the packaging integrity, are completed before the product is ready for distribution.
